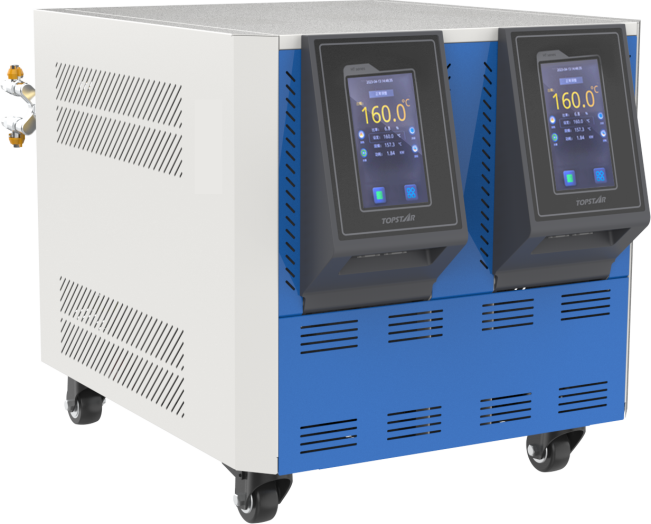

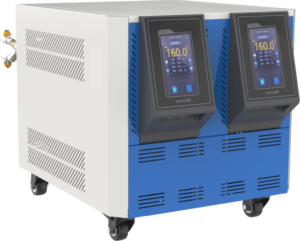

Máy điều khiển nhiệt độ khuôn TTWP-1210D

Water Type Mold Temperature Controllers
Model: TTWP-1210D
Temperature control range Cooling water +20℃ to 120℃
Cooling method Direct cooling
Controller 7-inch touch screen
Heater power 8KW+8KW
Water pump power 0.75KW+0.75KW
Maximum flow of water pump 58L/min
Maximum head of water pump 44M
Number of media inlets and outlets 4 in 4 out + 4 in 4 out
Media inlet and outlet diameter 3/8
Cooling water inlet and outlet Φ12
System power 380VAC 3P/PE 50Hz
Control power 220VAC 1P/PE 50Hz
Total machine power 17.9KW
Power cord specification 4×6.0mm²
Power cord length 5M
Appearance size L*W*H 772mm×390mm×562mm (with certain deviation)
